Fabrication:

For us, fabrication is the art of taking pipe, plate, structural shapes and vendor supplied components and paint, then using our capabilities to burn, cut, saw, machine, bend, roll, form, weld and finish to make the things you need in a efficient and timely manner.

Always expect quick turn around and high quality from us. No job is too small or too large and walk in customers are welcome. We can develop our own drawings, work with your sketch or drawing or duplicate an existing structure.

We serve the Bellefonte, Lock Haven, State College, Williamsport and surrounding Central Pennsylvania (PA) area. We currently have the following fabrication equipment to efficiently execute your project:

Fabricating Equipment:

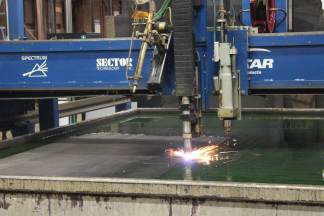

Sector High Definition CNC Plasma / Oxy-Fuel / Drilling Machine

• 11 ft x 13 ft water table dimensions
• 10 ft x 12 ft effective cut dimensions
• Burney 10 Controller
• 130 Amp Hypertherm Plasma unit

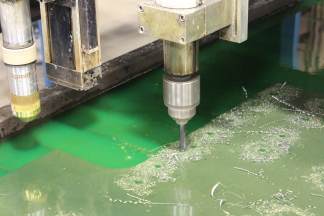

• 1 ¼ hp drill station
• Oxy-fuel torch station
• Served by overhead crane for efficient flow of material in and out
• Plasma cut up to ¾ in thick carbon steel, stainless steel and aluminum plate
• Oxy-Fuel cut up to 7 in thick carbon steel
• Efficient drilling ½ in and smaller diameter holes
• 3/16 in diameter pilot drilling all holes larger than ½ in diameter
• Input DXF files from office computer network
• Pro-nest software efficiently nests parts and minimizes scrap

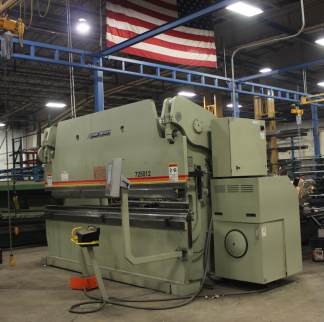

Accupress 725012 CNC Hydraulic Press Break

• 250 Ton
• 12 ft wide bed
• CNC Control
• Automatic Back Gauge

Cincinnati Shear

• Up to ¼ in thick carbon steel plate
• 10 ft wide

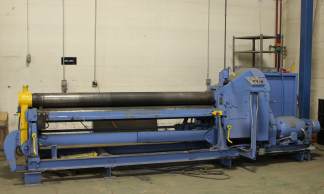

Bertsch Rolls

• ¹/₄ in thick carbon steel plate by 8 ft wide to a 13 ¹/₂ in min. diameter
• ³/₈ in thick carbon steel plate by 31 in wide to a 13 ¹/₂ in min. diameter
• ¹/₂ in thick carbon steel plate by 16 in wide to a 13 ¹/₂ in min. diameter

Faccin Rolls

• ¹/₈ in thick carbon steel plate by 5 ft wide to a 7 ³/₄ in min. diameter
• ¹/₄ in thick carbon steel plate by 5 ft wide to a 29 ¹/₂ in min. diameter
• ¹/₂ in Round Bar

Reed Rolls

• 10 Ga. (0.1345 in) thick carbon steel plate by 36 in wide to a 6 in min. diameter

Wellsaw Metal Cutting Miter Saw

• Cut up to 13 in O.D. round or 13 in x 16 in Rectangular at 0º Miter
• Cut up to 11 ½ in O.D. round or 13 in x 11 ½ in Rectangular at 45º Miter
• Cut up to 8 in O.D. round or 8 in x 8 ½ in Rectangular at 60º Miter
• Cut from 0 to 60º angle
• Large protractor and Laser Line Pointer for quick and accurate angle selection and set up
• Coolant cutting system
• Semi-automatic cut cycle

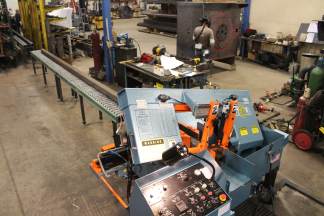

DoAll Horizontal Band Saw

• Designed for cutting a wide range of metals on a production basis
• Automatic operation and numerical control
• Solid, heavy duty construction provides more rigidity and reduces vibration
• Higher cutting rates, exceptional accuracy and superior surface finish
• 12” round or 12” x 12” cutting capacity

HE&M Vertical Metal Cutting Miter Saw

• Cut up to 14 in O.D. round or 14 in square
• Cut from 0 to 45º angle
• Coolant cutting system
• Semi-automatic cut cycle

Two Metal Cutting Bandsaws

• Cut up to 13 in O.D. round or 13 in square
• Coolant cutting system

Porta-Punch Hydraulic Punch

• 13/16 in diameter x ½ in thick plate 2 ¾ in throat opening

Flexarm Pneumatic Tapping Machine

• Up to ¾ in tap capacity
• 14 in to 51 in working range

Five - Floor Mounted Drill Presses

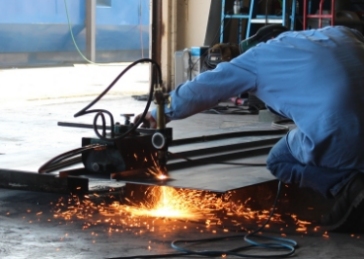

Track Torch

A valuable tool for cutting plate steel that is to large to cut on the plasma table and for beveling thick plate. Shown here cutting 4'x20' sheet of steel plate into 18" wide sections.

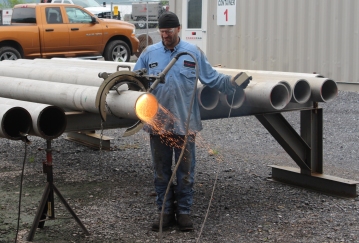

Mathey Dearman and Sawyer Manual Saddle type Pipe Cutting Beveling Machines 2 to 26 inch Pipe Size

Two – Hypertherm Powermax 85 amp hand held Plasma cutting systems

Four - Oxygen and Acetylene hand held Torch Sets

Welding Equipment

Machining Equipment

Sandblast and Paint Equipment

Check out our fabrication photo gallery to see some of the projects we have done for our customers.
