FaberFab Rotating Graphic

Welding

Welding:

Big projects, small projects, high volume or one off designs, quick turn around or a long term projects, in the shop or in the field, we do them all, contact us for your next welding project. Tell us what you need and when you need it, we always strive to get your project done on time.

Specializing in 1/8 inch through 1 inch thick material, we can efficiently execute your aluminum, stainless steel or carbon steel welding project with state-of-the-art manual, semi-automatic or fully automatic robotic welding equipment. Call our 24/7 number for quick response field welding services with our portable welding rigs. We offer the following welding processes and services:

SMAW - Shield Metal Arc Welding (Stick Welding) GTAW - Gas Tungsten Arc Welding (TIG Welding)
GMAW - Gas Metal Arc Welding (MIG Welding) FCAW - Flux-cored Arc Welding

We serve the Bellefonte, Lock Haven, State College, Williamsport and surrounding Central Pennsylvania (PA) area. We currently have the following welding equipment to efficiently execute your project:

FCAW / GMAW welding process:

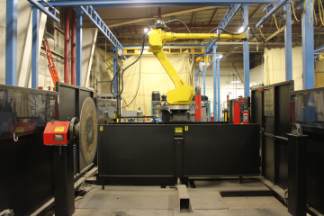

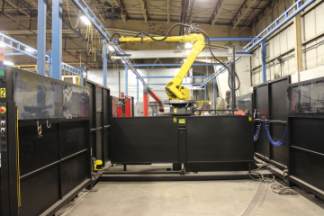

Lincoln-Fanuc 6 Axis Robotic Welding Cell 1 Lincoln-Fanuc 6 Axis Robotic Welding Cell 2

Lincoln-Fanuc 6 Axis Robotic Welding Dual Cell Unit

  • 8 ft x 8 ft x 8 ft fixed position work piece in cell 1
  • 2000 lb x 8 ft diameter x 8 ft long rolled out work piece in cell 2
  • 450 amp Lincoln Powerwave 455 welding unit
  • ASME Section IX weld procedures and qualified welders for carbon steel and stainless steel pipe up to 1.1 in thick
  • AWS D.1.1 (structural) GMAW procedures and qualified welders for Carbon Steel (Group 1 and 2 materials)


Capitol Welders 9 ft x 8 ft Weld Manipulator, with Oscillator and turning positioner

  • 10,000 lb x 6 ft diameter x 45 ft long rolled out work piece
  • 450 amp Miller Deltaweld 451 Welder with D-74-D Feeder welding unit
  • ASME Section IX weld procedures and qualified welders for carbon steel and stainless steel pipe up to 3/4 in thick

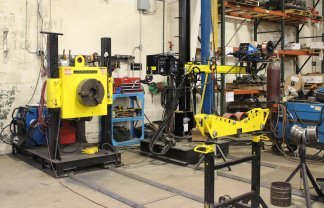

Stinger Prodcution Equipment Jimmy Jammer Weld Manipulator

Stinger Production Equipment Jimmy Jammer - 6 ft x 6 ft Weld Manipulator, with Oscillator and turning postioner
  • 3,000 lb x 16 inch diameter x 20 ft long rolled out work piece
  • 400 amp Miller PipeWorx Welding System power supply and wire feeders
  • ASME Section IX weld procedures and qualified welders for carbon steel pipe up to 3/4 in thick


Two - LJ Welding Automation 16P Pipe 3,000 lb pipe turning positioners


Two - 400 amp Miller PipeWorx Welding Systems


Six - 450 amp, Miller Deltaweld 450, 451 or 452 Welders with S-74-D Feeders


Three - 450 amp, Miller Deltaweld 450, 451 or 452 Welders with D-74-D Feeder


one - 450 amp, Miller Invision 456MP with D-74-D Feeder


one 300 amp, Miller Deltaweld 302 Welder with S-22A Feeder


  • AWS D.1.1 (structural) GMAW and FCAW procedures and qualified welders for Caron Steel (Group 1 and 2 materials)


SMAW / GTAW welding process:

Three - 600 amp, Lincoln Idealarc DC600 welders


one - 400 amp, Miller Tig Rig with Goldstar 400SS welder


one - 300 amp, Lincoln V300-Pro welder


Four 280 amp, Miller CST 280 Welders

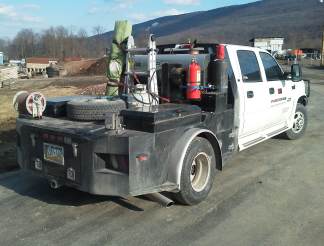

Field Welding Truck


Six Portable Welding Rigs each equipped with:

  • 225 amp min. gas or diesel powered engine driven welders
  • Welder qualified in AWS D.1.1 (structural) or ASME Section IX (pipe) SMAW process
  • Oxygen and Acetylene hand held Torch Set
  • Pipe jack stands, C-Clamps, Angle Grinders, Hammers and basic hand tools


Check out our welding photo gallery to see some of the projects we have done for our customers.
