Pipe Fabrication

With our skilled team of ASME Section IV qualified welders and our state-of-the-art equipment we can efficiently execute your pipe fabrication project. Our pipe shop is set up to efficiently fabricate launchers, receivers, and carbon steel and stainless steel pipe spools. The entire facility is served by overhead cranes. The material and production flow is designed to minimize handling. Our semi-automatic weld manipulators and robotic welder produce welds at a rate and quality that is unmatched by any other process.

We offer turnkey pipe fabrication packages including X-ray, magnetic particle and hydrostatic pressure testing, sandblasting and painting services complete with quality control documents.

No job is too small, we routinely turn out “next” day pipe spools complete with quality control documents.

We serve the Bellefonte, Lock Haven, State College, Williamsport and surrounding Central Pennsylvania (PA) area. We currently have the following pipe fabrication equipment to efficiently execute your project:

Pipe Fabrication Equipment:

Lincoln-Fanuc 6 Axis Robotic Welding Dual Cell Unit

• 8 ft x 8 ft x 8 ft fixed position work piece in cell 1
• 2000 lb x 8 ft diameter x 8 ft long rolled out work piece in cell 2
• 450 amp Lincoln Powerwave 455 welding unit
• ASME Section IX weld procedures and qualified welders for carbon steel and stainless steel pipe up to 1.1 in thick
• AWS D.1.1 (structural) GMAW procedures and qualified welders for Carbon Steel (Group 1 and 2 materials)

Capitol Welders – 9 ft x 8 ft Weld Manipulator, with Oscillator and turning positioner

• 10,000 lb x 6 ft diameter x 45 ft long rolled out work piece
• 450 amp Miller Deltaweld 451 Welder with D-74-D Feeder welding unit
• ASME Section IX weld procedures and qualified welders for carbon steel and stainless steel pipe up to 3/4 in thick

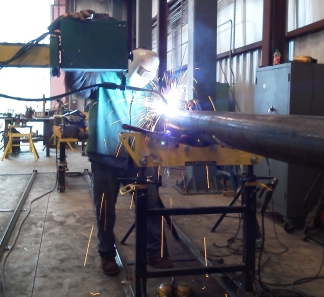

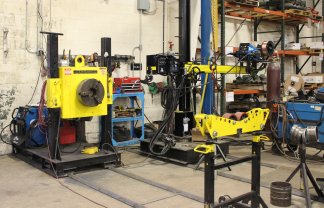

Stinger Production Equipment Jimmy Jammer - 6 ft x 6 ft Weld Manipulator, with Oscillator and turning postioner

• 3,000 lb x 16 inch diameter x 20 ft long rolled out work piece
• 400 amp Miller PipeWorx Welding System power supply and wire feeders
• ASME Section IX weld procedures and qualified welders for carbon steel pipe up to 3/4 in thick

Two - LJ Welding Automation 16P Pipe 3,000 lb pipe turning positioners

Two - 400 amp Miller PipeWorx Welding Systems

Three - 600 amp, Lincoln Idealarc DC600 welders

One - 400 amp, Miller Tig Rig with Goldstar 400SS welder

One - 300 amp, Lincoln V300-Pro welder

Four – 280 amp, Miller CST 280 Welders

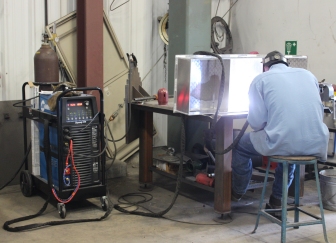

Dynasty 350 Welding Machine

• AC/DC
• Water Cooled
• GTAW Process

Mathey Dearman and Sawyer Manual Saddle type Pipe Cutting Beveling Machines 2 to 26 inch Pipe Size

Two – Hypertherm Powermax 85 amp hand held Plasma cutting systems

Four - Oxygen and Acetylene hand held Torch Sets

One – Cleveland Tramrail 5 Ton Overhead Bridge Crane and Monorail System

One - Gorbel 1 Ton Overhead Bridge Crane Systems

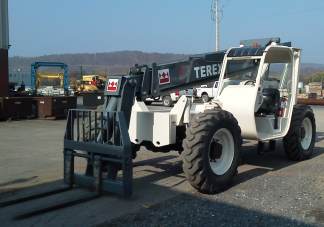

Terex TH842C Telehandler

• Capacity – 8000 lb at 20 ft and 2000 lb at 42 ft
• Lift Height – 42 ft

Terex TH844 Telehandler

• Capacity – 8000 lb at 20 ft and 2000 lb at 44 ft
• Lift Height – 44 ft

Check out our pipe fabrication photo gallery to see some of the projects we have done for our customers.
